SnoBar
Steel snow rail option for demanding snow retention applications on compatible standing seam and exposed-fastener metal roofs.
Learn About SnoBarMetal Roof Snow Retention

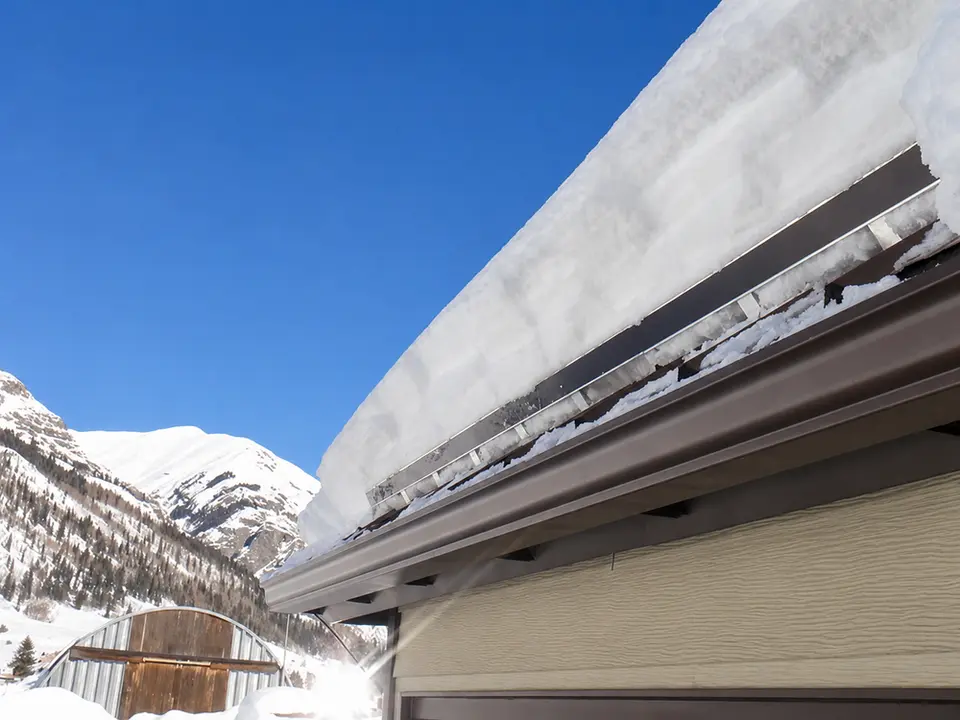

SnoBar & ColorBar Snow Rail Systems for Metal Roofs
Compare heavy-duty clamp-on and screw-down snow rail systems for standing seam and exposed-fastener metal roofs. Learn the difference between SnoBar and ColorBar before requesting a quote or ordering standard 6-foot kits.
A Focused Guide for Bar-Style Snow Retention
SnoBarColorBar.com is a supporting resource for SnoBar and ColorBar. For full product ordering, replacement parts, and the complete SnoBlox-Snojax catalog, visit snoblox-snojax.com.
Choose the Right Snow Rail System
Each system is designed for a different balance of strength, appearance, roof type, and installation method.
ColorBar
Aluminum color-matching snow rail option designed for strength, clean finished appearance, and optional 2-inch ColorStrips.
Learn About ColorBarSnow Rail Systems by Metal Roof Type
The correct snow rail system depends on the roof panel style, attachment method, seam or rib spacing, roof pitch, eave length, and local snow conditions.
Standing Seam Metal Roofs
Clamp-on SnoBar and ColorBar systems attach to compatible standing seams without penetrating the roof panel. These systems are commonly used when non-penetrating attachment is required.
Standing Seam Snow RailsExposed-Fastener Metal Roofs
Screw-down SnoBar and ColorBar systems attach through the panel into structural support for ribbed and exposed-fastener metal roof panels.
Screw-Down Snow RailsSnoBar vs ColorBar: What Is the Difference?
SnoBar and ColorBar are both bar-style snow retention systems, but they may differ in material, appearance, and color-matching options.
| Feature | SnoBar | ColorBar |
|---|---|---|
| Material | Galvanized or stainless steel | 6061-T6 extruded aluminum |
| Profile | Square steel rail profile | Structural aluminum profile |
| Appearance | Industrial, heavy-duty look | Clean finished look with optional color-strip matching |
| Color Options | Mill finish or powder coating options | Mill finish with optional color strip or powder coating options |
| Compatible Roof Types | Standing seam and exposed-fastener metal roofs | Standing seam and exposed-fastener metal roofs |
| Best Use | Economical snow rail applications | Strength and appearance-focused snow retention |
| Standing Seam Clamp Mounts | 6063 T-5 aluminum or stainless steel | 6063 T-5 aluminum or stainless steel |
| Screw Mount Options | 6063 T-5 aluminum MRM bracket | 6063 T-5 aluminum MRM bracket |
| Two-Bar Options | Standing seam and screw-down | Standing seam and screw-down |
| Continuous Bar | No, ends butt together with expansion space | Yes, aluminum splice connector included |
Need Help Designing a Snow Rail Layout?
Send us your roof pitch, panel type, seam or rib spacing, horizontal eave length, roof run, and project location. Our team can help determine whether a SnoBar or ColorBar system is the better fit.
Estimate Rows, Kits, and Layout Requirements
Use the correct snow rail calculator to estimate row counts, layout requirements, and quantities before requesting a quote or ordering online.
Standing Seam SnoBar Calculator
Estimate SnoBar rows and 6-foot kit quantities for compatible standing seam metal roof applications.
Use SnoBar CalculatorStanding Seam ColorBar Calculator
Estimate ColorBar rows and 6-foot kit quantities for compatible standing seam metal roof applications.
Use ColorBar CalculatorScrew-Down Snow Rails Calculator
Estimate row layouts and 6-foot kit quantities for exposed-fastener metal roof snow rail systems.
Use Screw-Down CalculatorShop 6-Foot Kits
Standard SnoBar and ColorBar 6-foot kits can be ordered through the SnoBlox-Snojax website.
Shop on SnoBlox-SnojaxCalculator results are planning estimates only. Final layouts should consider roof pitch, roof run, panel rib spacing or seam spacing, roof geometry, snow load, building use, and areas where falling snow or ice could create hazards.
Installation Resources
Review the correct installation instructions based on roof type, attachment method, and whether the project uses a single-bar or two-bar snow rail layout.
Clamp-On Snow Rail Instructions
Use these instructions for SnoBar and ColorBar systems installed on compatible standing seam metal roofs with non-penetrating clamps.
Screw-Down Snow Rail Instructions
Use these instructions for SnoBar and ColorBar systems fastened through compatible exposed-fastener metal roof panels into structural support.
Two-Bar Snow Rail Instructions
Use these instructions when the roof layout requires a two-bar SnoBar or ColorBar snow rail system.
Always match the installation instructions to the roof panel type and attachment method. Standing seam systems use clamp-on attachment, while exposed-fastener systems require brackets fastened into structural support.
Technical Information
Review technical data for SnoBar and ColorBar snow rail systems, including materials, clamp options, bracket types, roof attachment methods, color options, and system selection details.
SnoBar & ColorBar Technical Data
View product specifications, material information, attachment options, and technical details for standing seam and screw-down snow rail systems.
View Technical InformationNeed Help Choosing Components?
If you are unsure which clamp, bracket, rail, or attachment method fits your roof panel, request design help before ordering.
Request Design HelpSnoBar & ColorBar Snow Rail FAQ
What is the difference between SnoBar and ColorBar?
SnoBar is the steel snow rail option. ColorBar is the structural aluminum snow rail option with color-matching choices, including optional ColorStrips or powder coating.
Can SnoBar and ColorBar be used on standing seam metal roofs?
Yes. Clamp-on SnoBar and ColorBar systems can be used on compatible standing seam metal roof panels without penetrating the roof panel.
Can SnoBar and ColorBar be used on exposed-fastener metal roofs?
Yes. Screw-down SnoBar and ColorBar systems can be used on compatible exposed-fastener metal roofs when brackets are fastened into structural support.
Which system is better for color matching?
ColorBar is usually the better choice when appearance and color matching are priorities because it can use optional 2-inch ColorStrips or powder coating.
Do I need help designing a snow rail layout?
Yes, especially for projects with long roof runs, steep pitches, high snow loads, upper roofs that shed onto lower roofs, or areas above walkways, doors, parking areas, or equipment.
Are calculator results final engineering layouts?
No. Calculator results are planning estimates. Final layouts should consider roof pitch, panel type, seam or rib spacing, roof geometry, snow load, and project-specific conditions.
Ready to Choose a Snow Rail System?
Compare systems, request design help, review technical information, or shop standard 6-foot SnoBar and ColorBar kits through SnoBlox-Snojax.
