Clamp-On Metal Roof Snow Retention
SnoBar and ColorBar standing seam snow rail systems use non-penetrating clamps on compatible standing seam metal roofs. Compare steel and aluminum rail options, review clamp choices, use calculators, and request design help before ordering.
Standing seam snow rails are bar-style snow retention systems designed to attach to compatible standing seam metal roof panels with clamps. They are used to help manage snow and ice movement across larger roof areas instead of placing isolated retention only above doors, walkways, vents, or equipment.
The correct standing seam system depends on seam profile, seam spacing, roof pitch, roof run, horizontal eave length, snow load, roof geometry, and the building areas below the roof edge.
Both systems use a clamp-on attachment for compatible standing-seam metal roofs. The primary differences are the rail material, strength, and appearance.

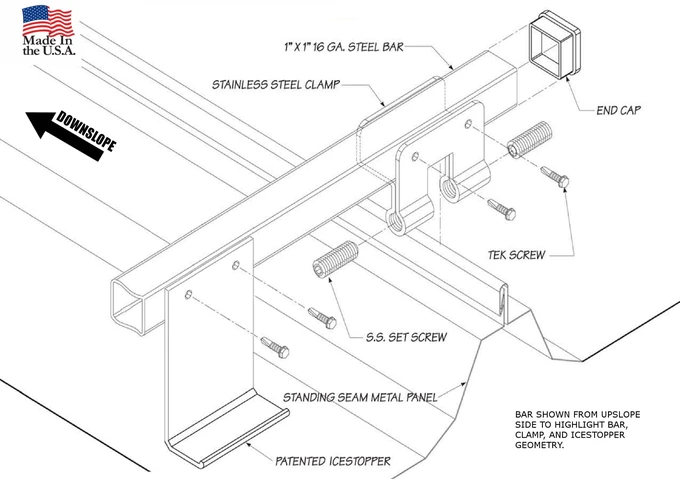

SnoBar is a square steel snow rail option for standing seam metal roofs. This bar system is a cost-effective snow-retention solution for sloped standing-seam and exposed-fastener metal roof panels.
Best for: Projects where an economical square steel snow bar is preferred for standing seam snow retention.
Learn About SnoBar

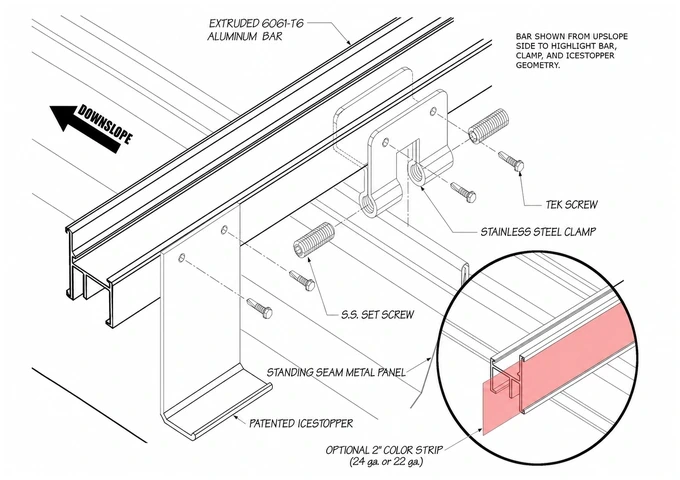

ColorBar is an aluminum snow rail option for standing seam and screw-down metal roofs. This snow bar is known for its clean appearance, color-matching options, and structural aluminum construction.
Best for: Projects where aluminum construction, color matching, and a clean architectural appearance are priorities.
Learn About ColorBarAttaching snow bar systems correctly to standing seam panels depends on the correct clamp for the roof panel seam. Proper bar clamp selection depends on seam shape, seam spacing, and panel compatibility.
Clamp-on systems attach to compatible standing seams without drilling through the roof panel, helping preserve the roof panel surface when properly installed.
Aluminum clamp systems may be used for compatible standing seam panels when the clamp, bracket, and layout are appropriate for the project.
Stainless steel clamp systems are another standing seam attachment option for compatible panels and selected SnoBar or ColorBar configurations.
Clamp compatibility is critical. Do not assume every standing seam panel uses the same clamp. Verify the seam profile, seam spacing, panel manufacturer information, and project conditions before ordering.

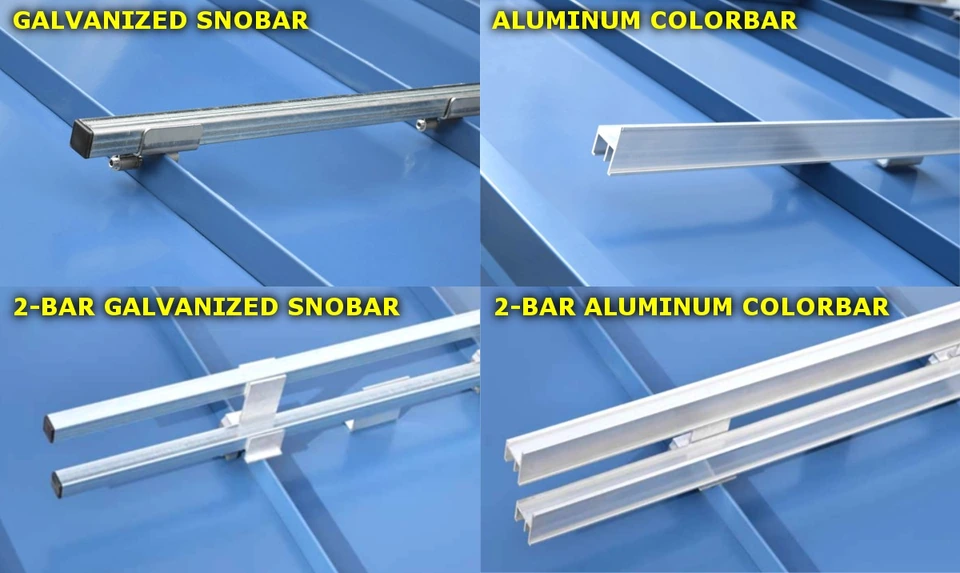

Use this comparison to decide whether SnoBar or ColorBar is the better starting point for a standing seam metal roof project.
| Feature | Standing Seam SnoBar | Standing Seam ColorBar |
|---|---|---|
| Rail Material | Galvanized steel, with stainless steel options available for selected applications | 6061-T6 extruded aluminum |
| Roof Attachment | Clamp-mounted on compatible standing seam panels | Clamp-mounted on compatible standing seam panels |
| Roof Penetration | No panel penetration when installed with compatible standing seam clamps | No panel penetration when installed with compatible standing seam clamps |
| Appearance | One-inch square steel bar appearance | Clean aluminum rail appearance with built-in color slot |
| Color Matching | Available powder coating options | Optional 2-inch ColorStrips or powder coating options |
| Continuous Bar Run | Rail ends butt together with proper expansion space | Uses aluminum splice connectors for continuous snow rail runs |
| Best Fit | Standing seam projects where a square steel snow bar is preferred | Standing seam projects where strength and appearance are both priorities |
Standing seam snow rail layouts should be based on roof pitch, seam spacing, horizontal eave length, roof run, snow load, roof geometry, roof areas above lower roofs, and pedestrian or vehicle areas below.
Send the project information before ordering if you are unsure which rail, clamp, row spacing, or accessory combination is required.
Use the correct calculator for the rail system before estimating quantities. Calculator results are planning estimates only and should not replace project-specific layout review.
Estimate SnoBar rows, 6-foot kit quantities, and layout requirements for compatible standing seam metal roof applications.
Use SnoBar CalculatorEstimate ColorBar rows, 6-foot kit quantities, and layout requirements for compatible standing seam metal roof applications.
Use ColorBar CalculatorRequest help when roof geometry, snow load, seam compatibility, upper roof areas, or pedestrian hazards need project-specific review.
Request Design HelpSnow retention should be designed for the full roof area contributing sliding snow. Do not isolate snow rails only above doors, walkways, vents, or other small areas. Upper roofs should be addressed before lower roofs when snow can shed from one roof area onto another.
Review the correct installation instructions for the clamp type and system layout before ordering or installing standing seam SnoBar or ColorBar snow rails.
Use these instructions for SnoBar and ColorBar systems installed on compatible standing seam metal roofs with stainless steel clamps.
Use these instructions for SnoBar and ColorBar systems installed on compatible standing seam metal roofs with aluminum RoofClamp attachment.
Use these instructions when the standing seam layout requires a two-bar SnoBar or ColorBar system.
Standing seam snow rails are bar-style snow retention systems that attach to compatible standing seam metal roof panels using roof clamps. They help control sliding snow and ice by clamping the bars to the panel seam.
Clamp-on standing seam SnoBar and ColorBar systems attach to compatible seams without penetrating the roof panel.
Yes. SnoBar and ColorBar can both be configured as clamp-on snow rail systems for compatible standing seam metal roofs when the correct clamps and layout are specified.
SnoBar is the 1-inch square steel snow rail option. ColorBar is the structural aluminum snow rail option with several color-matching choices. The better fit depends on appearance requirements, roof panel compatibility, layout, and project conditions.
Yes. Layout should consider roof pitch, seam spacing, horizontal eave length, roof run, snow load, roof geometry, and areas where falling snow or ice could create hazards.
Compare SnoBar and ColorBar, use the correct standing seam calculator, review installation instructions, or request project-specific design help before ordering.
